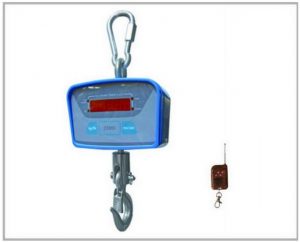

OCS-M Series
Main features
●New appearance, fashionable and beautiful
●Excellent dynamic weighing ability, does not subject
to the influence of shaking.
●Uniquely intelligent charging protection function, preventing
from discharging and overcharging, making the lifetime of the battery much longer.
●Optional remote controller for convenient operation
●Automatic shutoff
●High-luminance, low-luminance and auto adjusting （needs setting）
●Electricity consumption saving design, making the electricity
consumption of the circuit board much lower.
●Accumulation, auto accumulation, tare , long-distance tare,
overload alarm and convenient operation, etc.
Main Parameter
Weighing accuracy： Comply with OIML Ⅲ
Working temperature range： (-10℃~40℃）
Safe over-load： 150% F.S
Damage over-load： 200% F.S
Operation humidity： ＜95% R.H
Dimension of display： 5 digits 14mm(1.2＂）LED
Stability time of reading： ＜5s
Dimensions
| Capacity |
Division |
Length |
Ring radia |
Ring width |
Lifting hook |
G.W. |
| 200kg |
0.05 |
385 |
90 |
44 |
25 |
2 |
| 300kg |
0.05 |
385 |
90 |
44 |
25 |
2 |
| 500kg |
0.1 |
385 |
90 |
44 |
25 |
2 |
| 1000kg |
0.1 |
430 |
105 |
52 |
27 |
3 |
