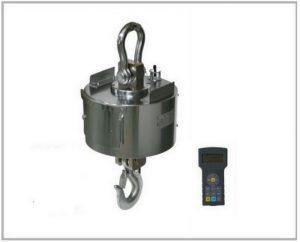

OCS-G6-1~50t
Product Features
1.High strength hook and shackle, durable
2.Handheld instrument with ABS frame, firm and durable
3.The show of the handheld instrument is clear and intuitive,
backlight function can be worked in night time.
4.Instrument and keyboard demarcate, easy to operate
5.Under power saving mode, instrument standby, shutdown automatic after 30 minutes,
crane scale shutdown automatic 60 minutes under standby status
6.Cumulative and query function are available.
Main Parameter
Weighing accuracy: Comply with OIML Ⅲ
Display refresh rate: 6 times per second
Operation time （with fully charged battery): 40 hours
Wireless transmission distance: No less than 200 meters without any obstacles
Working temperature range : -30 ~ + 50 degree
Safe over-load : 150% F.S
Damaging over-load: 300% F.S
Operation humidity: ＜95% R.H
Scale battery : 6V/4.5Ah rechargeable battery
Main Dimensions
| Exterior Dimension of OCS-G6 |
| Capacity(t) |
Division(kg) |
Length |
Ring radia |
Rind heigh |
lifting hook |
Round shell height |
Diameter |
Weight (kg) |
| 1 |
1 |
560 |
95 |
58 |
25 |
140 |
265 |
29.5 |
| 2 |
1 |
560 |
95 |
58 |
25 |
140 |
265 |
29.5 |
| 3 |
1 |
560 |
95 |
58 |
25 |
140 |
265 |
29.5 |
| 5 |
2 |
820 |
120 |
80 |
45 |
190 |
265 |
31 |
| 10 |
5 |
940 |
125 |
90 |
55 |
190 |
265 |
37 |
| 15 |
5 |
1000 |
135 |
98 |
60 |
190 |
320 |
61 |
| 20 |
10 |
1100 |
235 |
127 |
75 |
190 |
320 |
77 |
| 30 |
10 |
1290 |
280 |
90 |
90 |
190 |
375 |
132 |
| 50 |
20 |
1645 |
290 |
160 |
160 |
296 |
510 |
325 |
