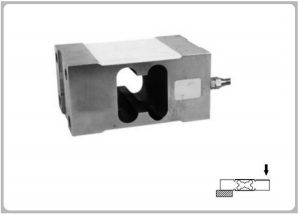

MC8830 LOAD CELL & FORCE TRANSDUCER
Product Features
Single point loading structure, Conner adjusted before delivery
to ensure consistent output in stated load plane. Simple to install，
easy to use. Suitable for electronic platform scale，etc.

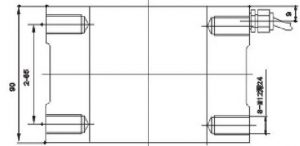

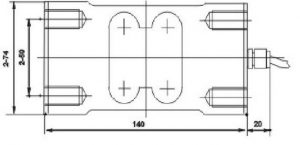

Main Dimensions and Accessories
Specification
| Capacity |
300kg;600kg;1t;2t |
Input resistance |
400±20Ω |
| Rated output |
2.0mv/v±0.1% |
Output resistance |
351±5Ω |
| Total error |
0.05%F.S |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP65/66 |
| Zero balance |
±1%F.S |
Material: Aluminum Alloy |
| Cable: φ5×3m |
| Wring: +Exc ( Red) ;－Exc ( Black);＋Sig ( Green);－Sig ( White) |
