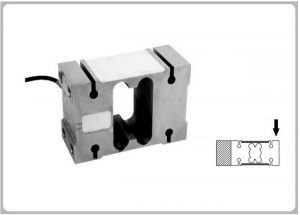

Product Features
Box type single point loading structure. Corner adjusted before
delivery to ensure consistent output in stated load plane.
Simple to install，easy to use， suitable for electronic
platform scale，etc.

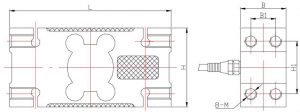

Main Dimensions and Accessories
| Capacity |
Size mm |
| kg |
L |
B |
B1 |
H |
H1 |
M |
| 50-200 |
156 |
44 |
24 |
75 |
50 |
M12 |
| 250-750 |
146 |
60 |
36 |
95 |
70 |
M12 |
| 1000-2000 |
176 |
76 |
46 |
125 |
95 |
M16 |
Specifications
| Capacity |
50kg~2t |
Input resistance |
400±20Ω |
| Rated output |
2.0 mv/v±0.1% |
Output resistance |
351±5Ω |
| Total error |
0.02%F.S; 0.05%F.S; |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
300%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP67/68 |
| Zero balance |
±1%F.S |
Material: Alloy steel / Stainless steel |
| Cable: φ5×3m |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
