Product Features

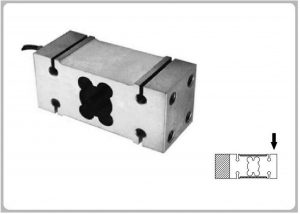

Box type single point loading structure. Corner adjusted before delivery
to ensure consistent output in stated load plane. Simple to install，easy
to use， suitable for electronic scale，etc.
Main Dimensions and Accessories
Capacity ：50kg；100kg；150kg；200kg；250kg；300kg；500kg；750kg；1000kg；1500kg；2000kg
Specifications
| Capacity |
50kg~2000kg |
Input resistance |
400±20Ω |
| Rated output |
2.0 mv/v±0.1% |
Output resistance |
351±5Ω |
| Total error |
0.02%F.S; 0.05%F.S; |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP66/IP67 |
| Zero balance |
±1%F.S |
Material: Alloy steel / Stainless steel |
| Cable: φ5×3m |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
