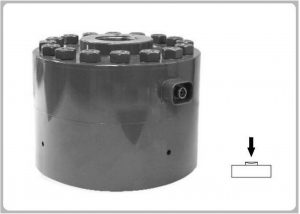

Alternative：Lnterface 1200

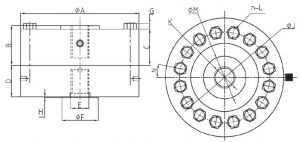

Main Dimensions and Accessories
| Rated capacity |
DIMENSIONS (mm) |
| ΦA |
B |
C |
D |
E |
ΦF |
G |
H |
ΦJ |
K |
n-L |
ΦM |
N |
| 900KN |
279.0 |
88.9 |
76.2 |
76.2 |
M72×2-4H×69.8 |
114.3 |
12.7 |
0.8 |
228.6 |
M72×2-4H×82.6 |
16×16.5 |
122.2 |
11.25° |
| 1200KN |
279.0 |
101.6 |
101.6 |
101.6 |
M72×2-4H×69.8 |
114.3 |
12.7 |
0.8 |
222.2 |
M72×2-4H×95.3 |
16×20.1 |
122.2 |
11.25° |
| 1800KN |
304.8 |
114.3 |
114.3 |
114.3 |
M90×3-4H×95.3 |
152.4 |
15.0 |
0.8 |
241.3 |
M90×3-4H×95.3 |
20×20.1 |
144.3 |
9° |
| 2700KN |
393.7 |
139.7 |
127.0 |
127.0 |
M120×4-4H×108 |
196.9 |
17.5 |
0.8 |
322.1 |
M120×4-4H×108 |
24×23.9 |
196.3 |
7.5° |
| 4500KN |
520.7 |
158.8 |
177.8 |
177.8 |
M150×2-4H×162 |
267.9 |
25.4 |
0.8 |
419.1 |
M150×4-4H×130 |
28×27 |
267.9 |
6.43° |
| 9000KN |
660.4 |
196.9 |
228.6 |
228.6 |
M200×2-4H×184 |
355.6 |
31.3 |
2.5 |
520.7 |
M200×4-4H×178 |
32×33.3 |
350.3 |
5.63° |
Specification
| Capacity |
900～9000KN |
Input resistance |
385/750±20Ω |
| Rated output |
2.0 /4.0mv/v±0.1% |
Output resistance |
350/700±3Ω |
| Total error |
0.07～0.18%F.S |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.05%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Allow steel , stainless steel |
| Cable: 15m |
| Wring: +Exc ( Red) ;－Exc ( Black);＋Sig ( Green);－Sig ( White) |
