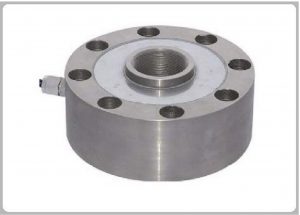

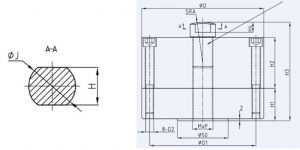

Main Dimensions and Accessories
| Capacity(t) |
φD |
M*P |
H1 |
H2 |
H3 |
H4 |
H5 |
H |
φJ |
A |
φD1 |
D2 |
| 1,2,3 |
105 |
M14*2 |
25 |
45 |
85 |
10 |
22.5 |
20 |
25 |
40 |
90 |
M*55 |
| 5 |
120 |
M20*1.5 |
30 |
50 |
95 |
10 |
25 |
25 |
30 |
45 |
104.5 |
M8*65 |
| 10,20 |
155 |
M32*2 |
35 |
55 |
115 |
15 |
27.5 |
35 |
45 |
60 |
133 |
M10*75 |
Specification
| Capacity |
1～20t |
Input resistance |
385/750±20Ω |
| Rated output |
2.0 mv/v±0.1% |
Output resistance |
350/700±3Ω |
| Total error |
0.05; 0.1 |
Safe overload |
120%F.S |
| Creep in 30 minutes |
<±0.05%F.S |
Ultimate overload |
300%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP67 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: 3m@(1-3)kg; 10m@(5-20)t; |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig (Green);－Sig (White) |
