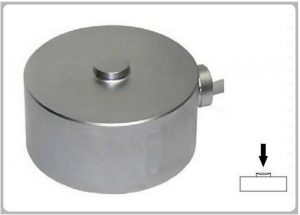

MC8706 LOAD CELL & FORCE TRANSDUCER
Alternative：HBM C2
Product Features
Shear beam，good rigidity，strong side force resistance，high output，
overload self-locking. Potted sealed or hermetically sealed. Widely
used in truck scale，railroad scale，tester etc.

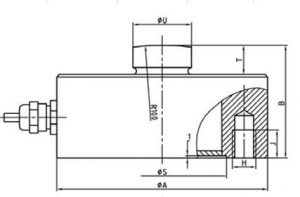

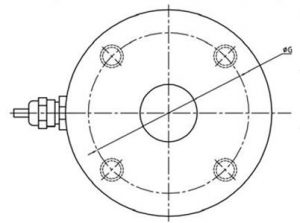

Main Dimensions and Accessories
| Capacity(t) |
ΦA-0.2 |
B |
ΦG |
H |
J |
R |
φS |
T |
φU |
| 0.05-1 |
50 |
30 |
42 |
4-M5 |
7 |
60 |
34 |
7 |
13 |
| 2t-5t |
90 |
48 |
70 |
4-M10 |
12 |
100 |
55 |
12.5 |
25 |
| 10t-20t |
115 |
60 |
90 |
4-M12 |
16 |
160 |
68 |
12.5 |
32 |
| 50t |
155 |
90 |
125 |
4-M16 |
20 |
300 |
97 |
15.5 |
44 |
Specifications
| Capacity |
50kg～50t |
Input resistance |
400±10Ω |
| Rated output |
2.0 mv/v±0.1% |
Output resistance |
350±3Ω |
| Total error |
0.3, 0.5 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.05%F.S |
Ultimate overload |
300%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP67/68 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: 3m@(50-1000)kg; 6m@(2-5)t; 12m@(10-50)t |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
