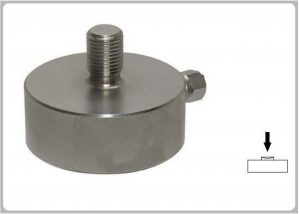

MC8705 LOAD CELL & FORCE TRANSDUCER
Product Features
Shear beam，good rigidity，strong side force resistance，high output，
overload self-locking. Potted sealed or hermetically sealed.

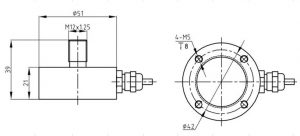

Main Dimensions and Accessories
Specification
| Capacity |
0.05t～2t |
Zero balance |
±1%F.S |
| Rated output |
2.0mv/v±0.5% |
Input resistance |
400±30Ω |
| Accuracy class |
0.15 |
Output resistance |
350±3.5Ω |
| Non-linearity |
0.15%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.15%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
30V AC/DC |
| Temperature effect zero |
0.02%F.S/10℃ |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP67/68 |
| Operating temperature range |
(-30～+70℃) |
Material: Alloy steel / Stainless steel |
| Cable: 3m |
| Wring: +Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) |
