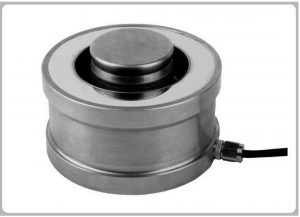

MC8704 LOAD CELL & FORCE TRANSDUCER
Product Features
shear beam，good rigidity，strong side force resistance，high output，
overload self-locking. Potted sealed or hermetically sealed. Widely
used in truck scale，railroad scale，tester，crane scale，etc.

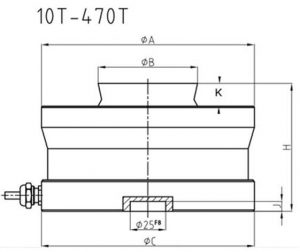

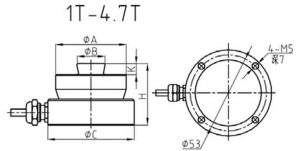

Main Dimensions and Accessories
| Capacity |
DIMENSIONS (mm) |
| ΦA |
φB |
φC |
H |
J |
K |
| 1t |
49 |
20 |
60 |
43 |
/ |
7.5 |
| 2.2t |
49 |
20 |
60 |
43 |
/ |
7.5 |
| 4.7t |
49 |
20 |
60 |
43 |
/ |
7.5 |
| 10t |
74 |
30 |
75 |
50 |
7 |
6.5 |
| 15t |
75 |
30 |
75 |
50 |
7 |
6.5 |
| 22t |
75 |
30 |
75 |
50 |
7 |
6.5 |
| 33t |
95 |
40 |
95 |
65 |
7 |
10 |
| 47t |
130 |
60 |
130 |
75 |
7 |
14 |
| 68t |
130 |
60 |
130 |
85 |
7 |
14 |
| 100t |
150 |
70 |
150 |
90 |
7 |
16 |
| 150t |
150 |
70 |
150 |
90 |
7 |
16 |
| 220t |
225 |
100 |
225 |
130 |
10 |
24 |
| 330t |
225 |
100 |
225 |
130 |
10 |
24 |
| 470t |
270 |
120 |
270 |
170 |
10 |
28 |
Specification
| Capacity |
1～470t |
Zero balance |
±1%F.S |
| Rated output |
2.85mv/v±0.1% |
Input resistance |
4450±100Ω |
| Accuracy class |
C3，0.05，0.1 |
Output resistance |
4010±0.5Ω |
| Non-linearity |
0.02，0.05，0.1%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05,0.1%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05，0.1%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
30V AC/DC |
| Temperature effect zero |
0.02%F.S/10℃ |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: Alloy steel / Stainless steel |
| Cable: 5m@(1～15)t; 12m@(22～470)t |
| Wiring: { +Exc (Black)) ;－Exc (Blue;＋Sig (Red); －Sig (White) } or {+Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White)} |
