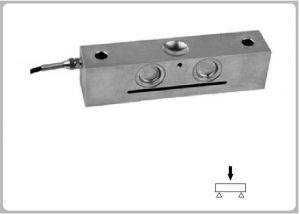

MC8623 LOAD CELL & FORCE TRANSDUCER
Product Features
Unique bridge structure，cup and steel ball mounted， Self-resetting
and centering，good side force resistance and shock resistance.
Moisture proof sealed，ideal for hostile environment，Simple to
install，easy to use，good interchangeability suitable for electronic
truck scale，railroad scale，hopper scale and various special scales.

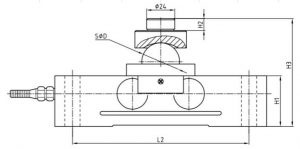

Main Dimensions and Accessories
| Capacity(t) |
DIMENSIONS (mm) |
| L1 |
L2 |
B |
H1 |
H2 |
H3 |
D |
| 0.5 |
180 |
150 |
37 |
43 |
10 |
88.54 |
φ25.4 |
| 2,3 |
200 |
160 |
40 |
52 |
10 |
99.75 |
φ31.8 |
Specifications
| Capacity |
0.5t, 2t, 3t |
Input resistance |
750±10Ω |
| Rated output |
2.0 mv/v±0.1% |
Output resistance |
702±3Ω |
| Total error |
0.03, C3 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Alloy steel / Stainless steel |
| Cable: 6m |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
