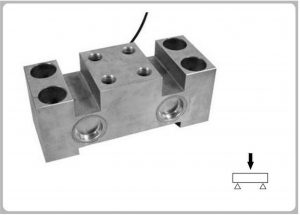

MC8621 LOAD CELL & FORCE TRANSDUCER
Product Features
Planar load bearing bridge，reasonable structure. Simple and reliable
load bearing，easy to use，simple to install. Widely used in
consecutive-casting bale scale，middle bag scale， steel ladle scale，
traveling crane scale and other weighting systems in steel industry.

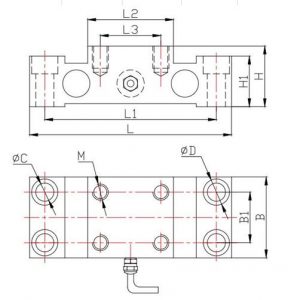

Main Dimensions and Accessories
| Capacity |
DIMENSIONS (mm) |
| t |
L |
L1 |
L2 |
L3 |
H |
H1 |
| 10 |
200 |
170 |
85 |
60 |
60 |
50 |
| 20 |
300 |
240 |
103 |
60 |
120 |
115 |
| 30 |
300 |
240 |
110 |
60 |
120 |
110 |
| 40-50 |
300 |
240 |
110 |
60 |
120 |
115 |
| Capacity |
DIMENSIONS (mm) |
| t |
B |
B1 |
φC |
φD |
M |
| 10 |
80 |
50 |
18 |
26 |
M16 |
| 20 |
120 |
70 |
26 |
43 |
M24 |
| 30 |
150 |
70 |
26 |
43 |
M24 |
| 40-50 |
150 |
70 |
26 |
43 |
M24 |
Specifications
| Capacity |
10～50t |
Input resistance |
750±10Ω |
| Rated output |
2.0mv/v±0.1% |
Output resistance |
702±3Ω |
| Total error |
0.03,C3 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
300%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: 12m@10t, 14m@20t&30t, 16m@40t&50t |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
|
|
|
|
|
|
|
|
|
