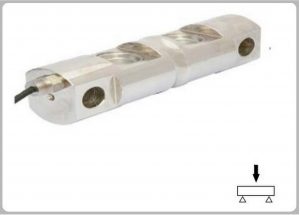

MC8609 LOAD CELL & FORCE TRANSDUCER
Product Features
Double shear beam，unique floating bearing structure. Self-resetting ，
good side force resistance and shock resistance .Moisture proof sealed,
ideal for hostile environment. Simple to install, easy to use，good
interchangeability . Suitable for electronic truck scale， railroad scale，
hopper scale and various special scales.

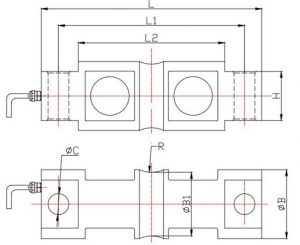

Main Dimensions and Accessories
| Capacity |
Size mm |
| |
L |
L1 |
L2 |
H |
ΦB |
φB1 |
ΦC |
R |
| 5-10klb |
206.2 |
174.6 |
133 |
28.5 |
43.2 |
37.6 |
16.8 |
12.7 |
| 20-25klb |
206.2 |
174.6 |
133 |
28.5 |
49.5 |
37.6 |
16.8 |
12.7 |
| 30-75klb |
260 |
216 |
165 |
60.2 |
76.2 |
69.3 |
27 |
25.4 |
| 100klb |
286 |
241.3 |
190.2 |
63.5 |
88 |
82.3 |
27 |
38.1 |
Specification
| Capacity |
5～100klb |
Input resistance |
750±10Ω |
| Rated output |
3.0mv/v±0.1% |
Output resistance |
702±3Ω |
| Total error |
0.03, C3 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Allow steel/ Stainless steel |
| Cable: 8m@5～10klb;12m@20～75klb; 16m@100klb |
| Wring: +Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) |
