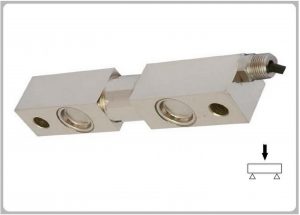

MC8608 LOAD CELL & FORCE TRANSDUCER
Product Features
Double shear beam，unique floating bearing structure. Self-resetting，
good side force resistance and shock resistance. Moisture proof sealed，
ideal for hostile environment. Simple to install， easy to use， good
interchangeability .Suitable for electronic truck scale， railroad scale，
hopper scale and various special scales.

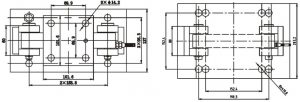

Main Dimensions and Accessories
| Capacity |
Size mm |
| klb |
L |
L1 |
B |
B1 |
H |
φC |
Φc1 |
| 2-5klb |
190.5 |
159.1 |
31 |
30.5 |
31 |
12.7 |
31.5 |
| 10-35klb |
222 |
190.5 |
36.6 |
42 |
48.5 |
19 |
50.6 |
Specification
| Capacity |
2～35klb |
Input resistance |
750±10Ω |
| Rated output |
3.0mv/v±0.1% |
Output resistance |
702±3Ω |
| Total error |
0.03,C3 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Allow steel |
| Cable: 6m@2～5klb;10m@10～35klb |
| Wring: +Exc ( Red) ;－Exc ( Black);＋Sig ( Green);－Sig ( White) |
MC8608 Weighing Module
2-5klb 10-35klb
