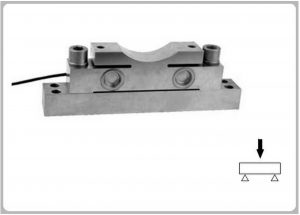

MC8607 LOAD CELL & FORCE TRANSDUCER
Product Features
Bridge type double shear beam，unique floating bearing structure.
Self-resetting，good side force resistance and shock resistance.
Moisture proof sealed，ideal for hostile environment. Simple to install ，
easy to use ， good interchangeability. Suitable for electronic truck scale，
railroad scale，hopper scale and various special scale.

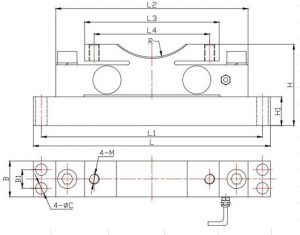

Main Dimensions and Accessories
| Capacity |
DIMENSIONS (mm) |
| L |
L1 |
L2 |
L3 |
L4 |
H |
| 10-30t |
390 |
345 |
300 |
210 |
180 |
127 |
| 40-60t |
500 |
445 |
395 |
235 |
200 |
173 |
| Capacity |
DIMENSIONS (mm) |
| 10-30t |
45 |
56 |
29 |
18 |
M16 |
80 |
| 40-60t |
67 |
86 |
45 |
22 |
M20 |
90 |
Specifications
| Capacity |
10～60t |
Input resistance |
750±10Ω |
| Rated output |
3.0mv/v±0.1% |
Output resistance |
702±3Ω |
| Total error |
0.03 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.03%F.S |
Ultimate overload |
300%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Alloy steel / Stainless steel |
| Cable: 8m@10t, 10m@15t&20t, 12m@20t, 16m@30t&40t&50t&60t |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
