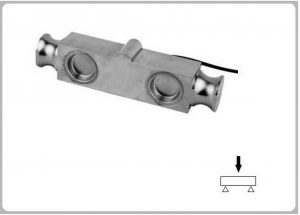

MC8605 LOAD CELL & FORCE TRANSDUCER
Product Features
Unique floating bearing structure. Self-resetting，good side
force resistance and shock resistance. Moisture proof sealed，
ideal for hostile environment，Simple to install，easy to use，
good interchangeability Suitable for electronic truck scale，
railroad scale，hopper scale and various special scales.

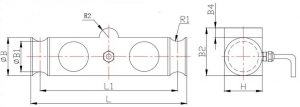

Main Dimensions and Accessories
| Capacity |
DIMENSIONS (mm) |
Weight (kg) |
| L |
L1 |
B |
B1 |
B2 |
B4 |
H |
R1 |
R2 |
| 25-40klb |
210 |
185 |
51 |
41 |
64 |
13 |
51 |
13 |
13 |
6.8 |
| 50-75klb |
292 |
254 |
56 |
43 |
76 |
13 |
51 |
21 |
13 |
10.4 |
| 100-125klb |
368 |
317 |
81 |
62 |
99 |
21 |
74 |
25 |
38 |
19.7 |
Specifications
| Capacity |
25～125klbs |
Input resistance |
750±10Ω |
| Rated output |
3.0mv/v±0.1% |
Output resistance |
702±3Ω |
| Total error |
0.03,C3 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.03%F.S |
Ultimate overload |
250%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Alloy steel / Stainless steel |
| Cable: 12m@25klb&40klb&50klb; 16m@60klb&75klb&100klb&125 klb |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
