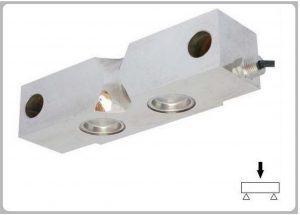

Product Features
Cambered surface loading，high precision and high reliability. Easy installation
and changing.Truck scale，railway scale，axle wheel scale，floor scale，
warehouse scale.

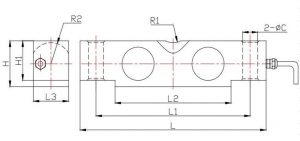

Main Dimensions and Accessories
| Size (mm) |
Capacity |
| 10-25klb |
40klb |
50-75klb |
| L |
196.9 |
260.4 |
260.4 |
| L1 |
165.1 |
215.9 |
215.9 |
| L2 |
125.1 |
162.4 |
162.4 |
| L3 |
42.9 |
49.3 |
62 |
| H |
49.3 |
62 |
74.7 |
| H1 |
43.2 |
53.3 |
67.3 |
| R1 |
19.1 |
25.4 |
25.4 |
| R2 |
22.9 |
28.5 |
34.8 |
| Φ C |
17.3 |
21 |
27 |
Specification
| Capacity |
10～70klb |
Input resistance |
750±10Ω |
| Rated output |
3.0mv/v±0.1 |
Output resistance |
702±3Ω |
| Total error |
0.03, C3 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
(-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Allow steel/ Stainless steel |
| Cable: 10m@10～40klb;16m@50～75klb |
| Wring: +Exc ( Red) ;－Exc ( Black);＋Sig ( Green);－Sig ( White) |

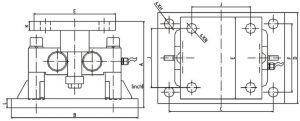

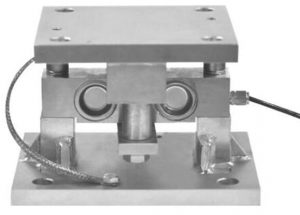

MC8603 Module
| |
A |
B |
C |
D |
E |
F |
H |
J |
K |
L |
M |
| 10-25klb |
168 |
254 |
190.5 |
203 |
203 |
152 |
20 |
152 |
19 |
19 |
20 |
| 40klb |
198 |
355.6 |
292.1 |
254 |
203 |
190.5 |
28.5 |
152 |
19 |
25.4 |
20 |
| 50-75klb |
241.3 |
355.6 |
292.1 |
254 |
228.6 |
190.5 |
28.5 |
165 |
25.4 |
25.4 |
28.5 |
