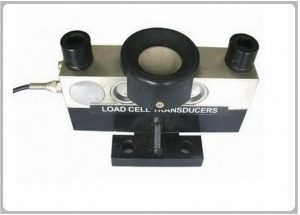

MC8601 LOAD CELL & FORCE TRANSDUCER
Product Features
Unique bridge structure，cup and steel ball mounted， Self-resetting and centering，
good side force resistance and shock resistance.Moisture proof sealed，ideal for
hostile environment， Simple to install ， easy to use， good interchangeability
suitable for electronic truck scale， railroad scale，hopper scale and various special scales.

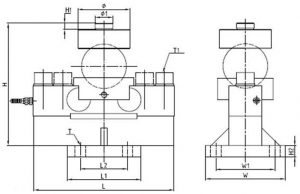

Main Dimensions and Accessories
| Rated Capacity (t) |
DIMENSIONS |
| L |
L1 |
L2 |
H |
H1 |
H2 |
φ |
φ1 |
W |
W1 |
T |
T1 |
| 10,20,30,40 |
mm |
240 |
125 |
80 |
224.8 |
11 |
20 |
88 |
30 |
135 |
100 |
4-φ18 |
2-M24 |
| inch |
9.45 |
4.92 |
3.75 |
8.85 |
0.43 |
0.79 |
3.46 |
1.18 |
5.31 |
3.94 |
| 40(E),50 |
mm |
340 |
160 |
124 |
261 |
11 |
20 |
98 |
40 |
160 |
124 |
4-φ21 |
4-M24 |
| inch |
13.38 |
6.3 |
4.88 |
10.28 |
0.43 |
0.79 |
3.86 |
1.57 |
6.3 |
4.88 |
Specifications
| Capacity |
10～50t |
Input resistance |
750±15Ω |
| Rated output |
2.0mv/v±0.1% |
Output resistance |
702±3Ω |
| Total error |
0.03,C3 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: 8m@10t, 10m@15t, 12m/16m@20t&25t&30t&40t, 16m@50t |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
|
|
|
|
|
|
|
|
|
