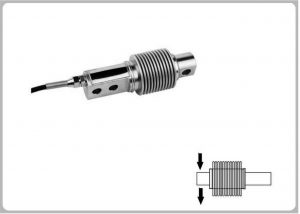

MC8509 LOAD CELL & FORCE TRANSDUCER
Product Features
Hermetically sealed stainless steel metallic crinkle. Tension
and compression；anti-overload， high fatigue resistance and
anti-deflective loading. Suitable for electronic belt scale，
hopper scale，etc

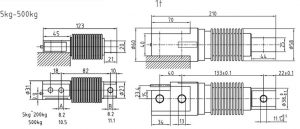

Main Dimensions and Accessories
Specification
| Capacity |
5～1000kg |
Zero balance |
±1%F.S |
| Rated output |
2.0mv/v±0.1% |
Input resistance |
400±50Ω |
| Accuracy class |
C3,D1 |
Output resistance |
356±1Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.012%F.S/10 |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: Stainless steel |
| Cable: 3m |
| Wring: +Exc (Blue) ;－Exc (Black);＋Sig (White);－Sig (Red) +Sen（Green）－Sen（Grey） |
