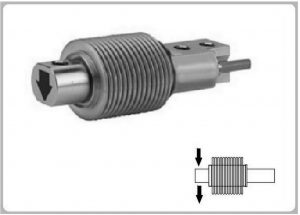

MC8502 LOAD CELL & FORCE TRANSDUCER
Alternative Vishay 355
Product Features
Hermetically sealed stainless steel metallic crinkle. Tension and compression ；
anti-overload，high fatigue resistance and anti-deflective loading. Suitable for
electronic belt scale，hopper scale，etc.

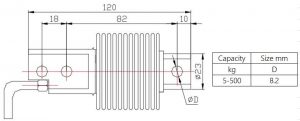

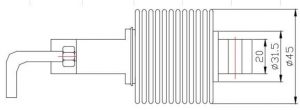

Main Dimensions and Accessories
Specification
| Capacity |
10～500kg |
Zero balance |
±1%F.S |
| Rated output |
2.0mv/v±0.1% |
Input resistance |
380±10Ω |
| Accuracy class |
C3,0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.012%F.S/10℃ |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: Stainless steel |
| Cable: 6m |
| Wiring：+Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) |
