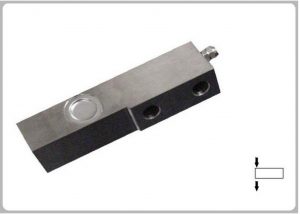

MC8419 LOAD CELL & FORCE TRANSDUCER
Alternative：Toledo SBH
Product Features
Shear beam load cell，one end fixed，diverse loading， and good
seal structure. Self-centering，simple to install，easy to
use，good interchangeability. Suitable for various ultra thin
electronic truck scale，one-track crane scale，hopper scale，etc.
Main Dimensions and Accessories
| Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
Q |
| 2.25,0.5,1t |
133.4 |
76.2 |
25.4 |
16.4 |
30.7 |
30 |
57.6 |
17 |
4.8 |
12.7 |
22 |
15.9 |
0.38 |
| 2t |
136.7 |
76.2 |
25.4 |
16.7 |
36.8 |
36.6 |
57.9 |
23 |
9.5 |
12.7 |
22 |
15.9 |
0 |
| 3t |
139.7 |
76.2 |
25.4 |
16.7 |
39 |
36.6 |
57.9 |
23 |
9.5 |
15 |
22 |
15.9 |
0 |
| 5t |
171.5 |
95.2 |
38.1 |
16.7 |
42.9 |
43 |
73.8 |
29.4 |
11 |
19 |
34.9 |
22.2 |
0 |
Specification
| Capacity |
0.25～5t |
Zero balance |
±1%F.S |
| Rated output |
2.0mv/v±0.2% |
Input resistance |
380±10Ω |
| Accuracy class |
C3，0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.02%F.S/10 |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: stainless steel |
| Cable: 5m |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
