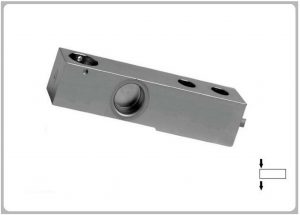

MC8417 LOAD CELL & FORCE TRANSDUCER
Alternative：HBM HLC
Product Features
Shear beam load cell，one end fixed，diverse loading， and good seal structure .
Self-centering，simple to install，easy to use，good interchangeability.
Suitable for various ultra thin electronic truck scale，one-track crane scale，
hopper scale，etc.
Main Dimensions and Accessories
| Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
ΦJ |
ΦL |
M |
N |
| 0.22-2t |
133.4 |
30.2 |
30.7 |
57.7 |
15.4 |
76.2 |
25.4 |
1.7 |
13 |
20.6 |
M12 |
14.2 |
| 2.2t |
171.5 |
36.5 |
36.7 |
76.2 |
19.1 |
95.3 |
38.1 |
2.5 |
20.5 |
30.2 |
M20 |
17 |
| 4.4t |
171.5 |
42.9 |
42.9 |
76.2 |
19.1 |
95.3 |
38.1 |
2.5 |
20.5 |
30.2 |
M20 |
20.1 |
| 10t |
245.1 |
72.9 |
60 |
119.9 |
30.2 |
134.9 |
50 |
11.2 |
27 |
51 |
φ32 |
20 |
Specification
| Capacity |
0.22～10t |
Zero balance |
±1%F.S |
| Rated output |
2.0,1.94mv/v±0.2% |
Input resistance |
385±5Ω |
| Accuracy class |
C3，0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.012%F.S/10 |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: stainless steel |
| Cable: 3m(≤2t）/6m |
| Wiring: +Exc (Blue) ;－Exc (Black);＋Sig (White);－Sig (Red) +Sen（Green）；－ Sen（Grey） |
