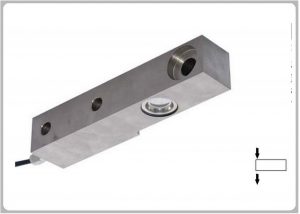

MC8415 LOAD CELL & FORCE TRANSDUCER
Product Features
Shear beam load cell，one end fixed，diverse loading，and good seal structure.
The tumbler indenter was used, high precision; the product has superiority in
anti-eccentric load and availability. Suitable for various ultra thin electronic
truck scale，one-track crane scale，hopper scale，etc.

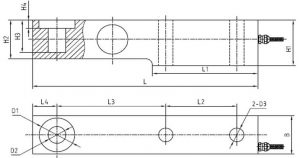

Main Dimensions and Accessories
| Rated Capacity(t) |
DIMENSIONS (mm) |
| L |
L1 |
L2 |
L3 |
L4 |
H1 |
H2/B |
H3 |
H4 |
D1 |
D2 |
D3 |
| 0.3, 0.5, 1, 2, 3 |
203 |
95 |
64 |
98 |
22 |
43 |
36.6 |
30.5 |
8 |
φ32 |
φ16 |
φ13 |
| 5, 7.5, 8 |
235 |
110 |
66 |
124 |
22 |
52 |
48 |
30 |
12 |
φ38 |
φ22 |
φ21 |
| 10 |
279 |
133 |
82 |
140 |
32 |
67 |
60 |
20 |
8.5 |
φ48 |
φ32 |
φ28 |
| 15, 20, 25 |
318 |
153 |
89 |
159 |
38 |
82.5 |
70 |
24 |
9.5 |
φ54 |
φ38 |
φ34 |
Specification
| Capacity |
03～25t |
Zero balance |
±1%F.S |
| Rated output |
2.0mv/v±0.1% |
Input resistance |
380±10Ω |
| Accuracy class |
C3，0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.012%F.S/10℃ |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP67 |
| Operating temperature range |
(-30～+65℃) |
Material: Alloy steel |
| Cable: 2.6m(≤0.3-2t)；3.5m（3t）； 5.2m（5-8t）； 7m（10t）； 12m（15-25t） |
| Wiring：+Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) Sen+(Blue);Sen-(Yellow) |
