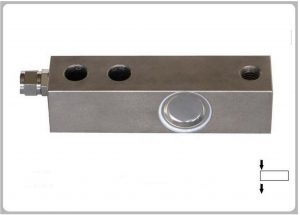

MC8413 LOAD CELL & FORCE TRANSDUCER
Alternative：VISHAY SQB-H
Product Features
Shear beam load cell，one end fixed，diverse loading，and
good seal structure. Self-centering，simple to install，
easy to use， good interchangeability. Suitable for various
ultra thin electronic truck scale，one-track crane scale，
hopper scale，etc.

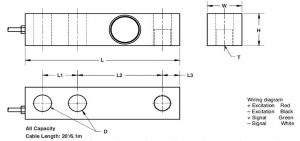

Main Dimensions and Accessories
| Capacity |
|
L |
L1 |
L2 |
L3 |
W |
H |
D |
T |
| 500,1000,2000kg |
mm |
130.2 |
25.4 |
76.3 |
12.7 |
31.2 |
31.2 |
13.5 |
M12×1.75 |
| 1k/2k/3k/4k/5k(SE)lbs |
(inch) |
5.12 |
1 |
3 |
0.5 |
1.22 |
1.22 |
0.53 |
1/2-20UNT |
| 1500kg |
mm |
130.2 |
25.4 |
88.9 |
12.7 |
31.2 |
31.2 |
13.5 |
M12×1.75 |
| 5000kg |
mm |
171.5 |
38.1 |
95.3 |
19 |
38.1 |
38.1 |
19.8 |
M20×1.5 |
| 5k/10k lbs |
(inch) |
6.75 |
1.5 |
3.75 |
0.75 |
1.5 |
1.5 |
0.78 |
3/4-16UNF |
Specification
| Capacity |
0.5～5t |
Zero balance |
±1%F.S |
| Rated output |
3.0mv/v±0.1% |
Input resistance |
385±5Ω |
| Accuracy class |
C3，0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.012%F.S/10 |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: alloy steel |
| Cable: 6m |
