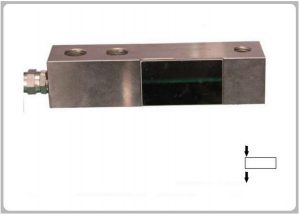

MC8412 LOAD CELL & FORCE TRANSDUCER
Alternative：VISHAY 3510
Product Features
Shear beam load cell，one end fixed, diverse loading，and good seal structure.
Self-centering，simple to install，easy to use， good interchangeability.
Suitable for various ultra-thin electronic truck scale，one-track crane scale，
hopper scale, etc.
Main Dimensions and Accessories
| CAPACITY |
A |
B |
C |
D |
E |
ΦF |
H |
I |
X |
Y |
| 1000,1500,2500,4000 lbs |
30.5 |
130 |
76.2 |
25.4 |
16 |
φ13.5 |
34 |
30.5 |
57 |
4 |
| 250,500,1000 kg |
30.5 |
130 |
76.2 |
25.4 |
16 |
M12 # |
34 |
30.5 |
57 |
4 |
| 2000kg |
36 |
130 |
76.2 |
25.4 |
16 |
M12# |
34 |
30.5 |
57 |
4 |
| #Tapped M12×1.75 & counterboared φ13.5×14.5 Deep |
Specification
| Capacity |
250-2000kg |
Zero balance |
±1%F.S |
| Rated output |
2.0 for kg and 3.0 for lbs |
Input resistance |
385±10Ω |
| Accuracy class |
C3；0.05 |
Output resistance |
351±5Ω |
| Non-linearity |
0.02；0.05%F.S |
Safe overload |
200%F.S |
| Hysteresis |
0.02；0.05%F.S |
Ultimate overload |
10V AC/DC |
| Creep in 30 minutes |
0.02；0.05%F.S |
Excitation voltage |
15V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
≥5000MΩ |
| Temperature effect zero |
0.02%F.S/10℃ |
Insulation resistance |
IP67 |
| Compensated temperature range |
(-10～+40℃ |
Environmental protection |
| Operating temperature range |
(-30～+65℃ J166 |
Material: Alloy steel , stainless steel |
| Cable: 3m / 6m |
