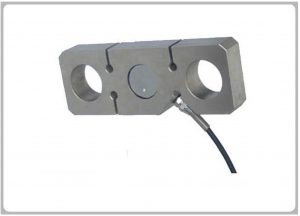

MC8304 LOAD CELL & FORCE TRANSDUCER
Product Features
Special load cell for crane scale, elastomeric use integral alloy steel,
High precision, strong overload protection capability and anti-deflective
loading With special ring and hook, easy to install

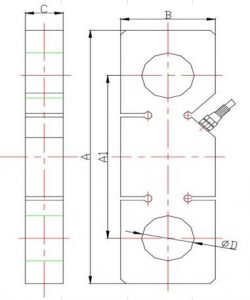

Main Dimensions and Accessories
| Capacity |
DIMENSIONS (mm) |
| klb |
t |
A |
B |
C |
A1 |
φD |
| 2-4klb |
2-3t |
199 |
60 |
22 |
133 |
φ32 |
| 5-10klb |
4t |
218 |
68 |
26 |
138 |
φ36 |
| 15klb |
5-6t |
227 |
70 |
28 |
147 |
φ40 |
| 20klb |
8-10t |
283 |
90 |
34 |
183 |
φ50 |
Specifications
| Capacity |
2～20 Klbs. |
Input resistance |
400±20Ω |
| Rated output |
2.0mv/v±0.1% |
Output resistance |
351±3Ω |
| Total error |
C3,0.05 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
250%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP67 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: 5m |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
