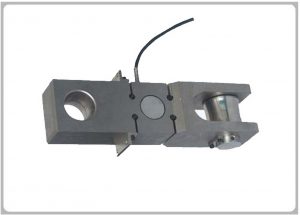

MC8302 LOAD CELL & FORCE TRANSDUCER
Product Features
Special load cell for crane scale, elastomeric use integral alloy steel,
High precision, strong overload protection capability and anti-deflective
loading With special ring and hook, easy to install

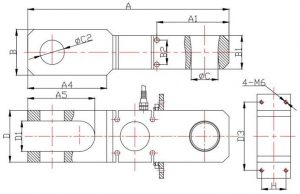

Main Dimensions and Accessories
| Capacity |
L |
L1 |
L2 |
L3 |
L4 |
W |
W1 |
| 1-5 kg |
228 |
25 |
74 |
23 |
60 |
45 |
26 |
| 7.5-10 kg |
270 |
32 |
99 |
32 |
79 |
60 |
36 |
| 15-20 |
330 |
40 |
119 |
40 |
110 |
75 |
55 |
| Capacity |
W2 |
φ D1 |
φ D2 |
H |
H1 |
H2 |
| 1-5 kg |
18 |
24 |
20 |
55 |
29 |
83 |
| 7.5-10 kg |
26 |
32 |
28 |
60 |
31 |
88 |
| 15-20 |
40 |
44 |
40 |
85 |
50 |
112 |
Specifications
| Capacity |
1～20t |
Input resistance |
400±20Ω |
| Rated output |
2.0mv/v±0.1% |
Output resistance |
351±3Ω |
| Total error |
C3,0.05 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
300%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP67 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: 5m |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
