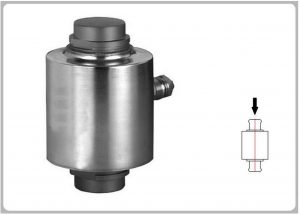

MC8217 LOAD CELL & FORCE TRANSDUCER
Product Features
Column type，hermetically sealed structure，argon-arc welded，IP68 Compression，
fast dynamic response， strong anti-overload capability，upper ball head load
bearing；Simple to install，easy to use，Suitable for electronic truck scale，
dynamic railroad scale and big capacity hopper scale，etc.

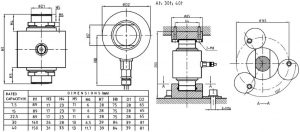

Main Dimensions and Accessories
Specifications
| Capacity |
7.5～50t |
Input resistance |
1150±50Ω |
| Rated output |
2.0mv/v±0.1% |
Output resistance |
1000±3Ω |
| Total error |
0.03,0.05 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
300%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: 12m, 18m@40t&50t |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
