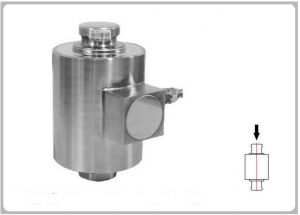

MC8214 LOAD CELL & FORCE TRANSDUCER
Alternative：Toledo GD
Product Features
Column type，hermetically sealed structure，argon-arc welded，
IP68 Compression，fast dynamic response， strong anti-overload
capability，upper ball head load bearing；Simple to install，
easy to use，Suitable for electronic truck scale，dynamic
railroad scale and big capacity hopper scale，etc.

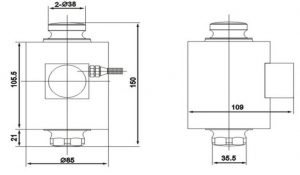

Main Dimensions and Accessories
Specification
| Capacity |
20～50t |
Input resistance |
1160±10Ω |
| Rated output |
2.0mv/v±0.1 |
Output resistance |
1003±5 |
| Total error |
0.03,0.05 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Allow steel |
| Cable: 12m@20t&25t;14m@30t;16m@40&50t |
| Wring: +Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White); ＋Sen (Blue);－Sig (Yellow) |
