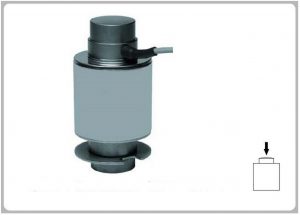

MC8213 LOAD CELL & FORCE TRANSDUCER
Alternative：HBM C16A
Product Features
Column type，hermetically sealed structure，argon-arc welded，
IP68 Compression，fast dynamic response， strong anti-overload
capability，upper ball head load bearing；Simple to install，
easy to use，Suitable for electronic truck scale，dynamic
railroad scale and big capacity hopper scale，etc.

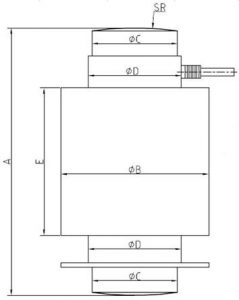

Main Dimensions and Accessories
| Rated capacity(t) |
DIMENSIONS (mm / inches) |
| A |
B |
C |
D |
E |
SR |
| 15 |
130.0（5.12） |
76.1(3.00) |
44.0(1.73) |
48.0(1.89) |
76.1(3.00) |
110.0(4.33) |
| 20 |
150.0（5.90) |
76.1(3.00) |
44.0(1.73) |
48.0(1.89) |
76.1(3.00) |
130.0(5.12) |
| 30 |
150.0(5.90) |
76.1(3.00) |
44.0(1.73) |
48.0(1.89) |
76.1(3.00) |
160.0(6.30) |
| 40 |
150.0(5.90) |
76.1(3.00) |
44.0(1.73) |
48.0(1.89) |
76.1(3.00) |
180.0(7.08) |
| 60 |
210.0(8.26) |
76.1(3.00) |
44.0(1.73) |
48.0(1.89) |
76.1(3.00) |
220.0(8.66) |
| 100 |
260.0(10.23) |
95.0(3.74) |
60.0(2.36) |
64.0(2.25) |
95.0(3.74) |
290.0(11.42) |
Specifications
| Capacity |
15～100t |
Input resistance |
700±20Ω |
| Rated output |
2.0 mv/v±0.1% |
Output resistance |
706±3 |
| Total error |
C3;D1 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
300%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP68 |
| Zero balance |
±1%F.S |
Material: Stainless steel |
| Cable: 12m@≤30t;20m@40t,60,100t |
| Wring: +Exc ( Blue) ;－Exc (Black);＋Sig ( White);－Sig (Red); ＋Sen (Green);－Sen(Gray)) |

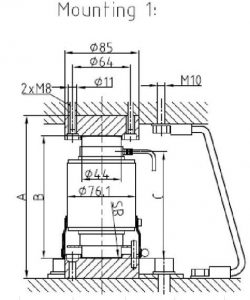

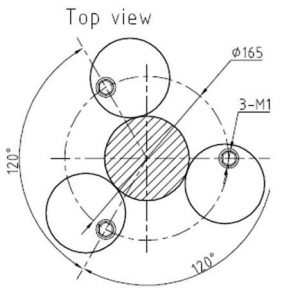

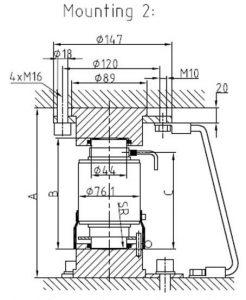

Weighing Module Mounting
| CAP |
A |
B |
C |
SR |
| 15t |
160 |
130 |
112 |
110 |
| 15t |
180 |
130 |
112 |
110 |
| 20t |
200 |
150 |
123 |
130 |
| 30t |
200 |
150 |
123 |
160 |
| 40t |
200 |
150 |
123 |
180 |
| 60t |
260 |
210 |
157 |
220 |
| CAP |
A |
B |
C |
SR |
| 20t |
229 |
150 |
123 |
130 |
| 30t |
229 |
150 |
123 |
160 |
| 40t |
229 |
150 |
123 |
180 |
| 60t |
289 |
157 |
157 |
220 |
