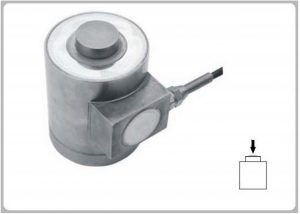

MC8205 LOAD CELL & FORCE TRANSDUCER
Product Features
Column type，hermetically sealed structure，argon-arc welded，
IP68 Compression，fast dynamic response，strong anti-overload
capability，upper ball head load bearing； Simple to install，
easy to use，Suitable for electronic truck scale，dynamic railroad
scale and big capacity hopper scale，etc.

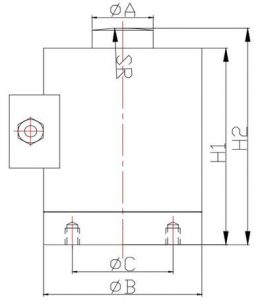

Main Dimensions and Accessories
| Capacity (t) |
DIMENSIONS (mm) |
| A |
B |
C |
H1 |
H2 |
SR |
| 1,2,3,5 |
26 |
64 |
38 |
78 |
88 |
80 |
| 10 |
34 |
76 |
46 |
95 |
106 |
120 |
| 15,20 |
34 |
88 |
56 |
118 |
130 |
120 |
Specifications
| Capacity |
1～20t |
Input resistance |
400±20Ω |
| Rated output |
2.0mv/v±0.1% |
Output resistance |
352±3Ω |
| Total error |
0.05 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
350%F.S |
| Temperature effect span |
<±0.03%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.03%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP67 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: 3m |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
