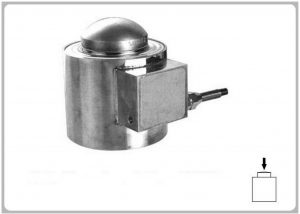

Product Features
Product Characteristic Column type，hermetically sealed structure，argon-arc welded，
IP68 Compression，fast dynamic response，strong anti-overload capability，upper ball
head load bearing； Simple to install，easy to use，Suitable for electronic truck
scale，dynamic railroad scale and big capacity hopper scale，etc.

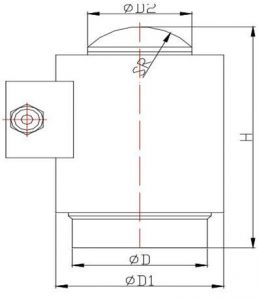

Main Dimensions and Accessories
| Capacity |
D |
D1 |
D2 |
H |
SR |
| 2-5t |
70 |
φ88 |
24 |
138.5 |
15 |
| 10-50t |
70 |
φ88 |
54 |
138.5 |
35 |
Specification
| Capacity |
2～50t |
Input resistance |
650±10Ω |
| Rated output |
1.0mv/v±0.1% |
Output resistance |
610±3Ω |
| Total error |
C3,0.05 |
Safe overload |
150%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
200%F.S |
| Temperature effect span |
<±0.03%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.03%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP67 |
| Zero balance |
±1%F.S |
Material: Allow steel/ Stainless steel |
| Cable: 14m |
| Wring: +Exc (Red) ;－Exc (Black);＋Sig ( Green);－Sig (White); ＋Sen (Blue);－Sig (Yellow) |
