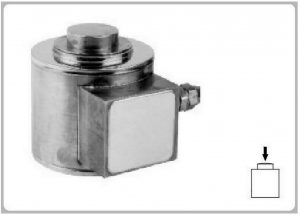

MC8201 LOAD CELL & FORCE TRANSDUCER
Product Features
Column type，hermetically sealed structure，argon-arc welded，IP68 Compression，
fast dynamic response，strong anti-overload capability，upper ball head load
bearing； Simple to install，easy to use，Suitable for electronic truck scale，
dynamic railroad scale and big capacity hopper scale，etc.

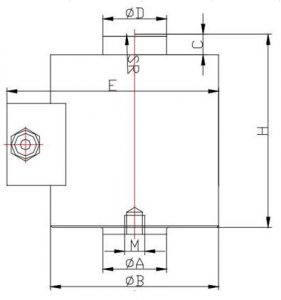

Main Dimensions and Accessories
| Capacity |
Size (mm) |
Weight (kg) |
| t |
A |
B |
C |
D |
E |
M |
SR |
| 20 |
48 |
76 |
9 |
31.8 |
94 |
M12 |
150 |
7.5 |
| 25 |
38 |
100 |
12 |
38 |
126 |
M20 |
150 |
7.5 |
| 30 |
38 |
100 |
12 |
38 |
126 |
M12 |
150 |
7.5 |
| 40 |
38 |
100 |
12 |
38 |
126 |
M20 |
150 |
7.5 |
| 50, 60 |
64 |
107 |
12.7 |
58 |
134.5 |
M20 |
200 |
16 |
| 70 |
64 |
125 |
13 |
58 |
149 |
M20 |
250 |
22 |
| 100 |
70 |
165 |
20 |
70 |
194.3 |
M20 |
300 |
30 |
| 150 |
78 |
165 |
20 |
70 |
194.3 |
M20 |
300 |
30 |
| 200 |
112 |
223 |
25 |
100 |
249 |
M24 |
500 |
35 |
| 300, 400 |
112 |
223 |
25 |
108 |
249 |
M24 |
500 |
35 |
Specification
| Capacity |
20～400t |
Zero balance |
±1%F.S |
| Rated output |
2.0mv/v±0.1% |
Input resistance |
400±20Ω |
| Accuracy class |
0.03, 0.05, 0.1 |
Output resistance |
352±3Ω |
| Non-linearity |
0.03；0.05；0.1%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.03；0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.03，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.012%F.S/10℃ |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: Alloy steel |
| Cable: Cable:12m@20t; 14m@25～40t; 16m@50～150t; 20m@200～400t. |
| Wiring：+Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) , ＋Sen (Blue);－Sig (Yellow) |
