MC8117 LOAD CELL & FORCE TRANSDUCER
Alternative TRANCELL BSS
Product Features
S type load cell，tension and compression. Good output symmetry，
compact structure，simple to install ， full range of capacities.
Suitable for electromechanical scale，crane scale，hopper scale
and various special scales.

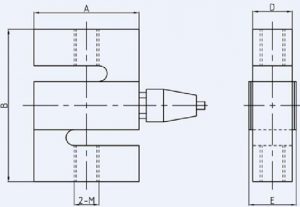

Main Dimensions and Accessories
| Capacity |
A |
B |
D |
E |
M |
| 100kg |
50.8 |
76.2 |
19 |
28 |
M10*1.5 |
| 200-750kg |
50.8 |
76.2 |
19 |
28 |
M12*1.75 |
| 1t-1.5t |
50.8 |
76.2 |
19 |
35 |
M12*1.75 |
| 2t-5t |
76.2 |
108.8 |
25 |
34 |
M18*1.5 |
| 10t |
127 |
177.8 |
50.4 |
60 |
M30*2 |
Specification
| Capacity |
0.1~10t |
Zero balance |
±1%F.S |
| Rated output |
3.0mv/v±0.1% |
Input resistance |
387±20Ω |
| Accuracy class |
C3，0.05 |
Output resistance |
350±5Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.012%F.S/10℃ |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP67/IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: Alloy steel |
| Cable: 6m |
| Wiring：+Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) |
