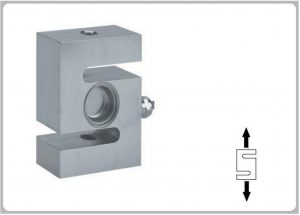

MC8115 LOAD CELL & FORCE TRANSDUCER
Product Features
S type load cell & force transducer，tension and compression.
Good output symmetry， compact structure，simple to install，
full range of capacities. Suitable for electromechanical scale，
crane scale，hopper scale and various special scales.

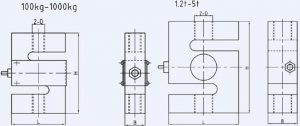

Main Dimensions and Accessories
| Capacity(kg) |
D |
L(mm) |
H(mm) |
B(mm) |
| 100-750 |
M12 |
51 |
76.2 |
19.1 |
| 1000 |
M12 |
51 |
76.2 |
25.4 |
| 1200-5000 |
M20*1.5 |
76.2 |
100.4 |
31.8 |
Specification
| Capacity |
0.1～5t |
Zero balance |
±1%F.S |
| Rated output |
2.0mv/v±0.3% |
Input resistance |
380±10Ω |
| Accuracy class |
C3,0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.02%F.S/10 |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP67 |
| Operating temperature range |
(-30～+65℃) |
Material: Alloy steel / Stainless steel |
| Cable: 5m |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
