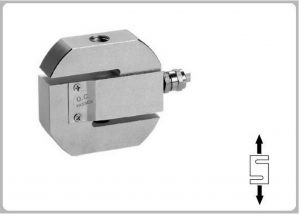

MC8114 LOAD CELL & FORCE TRANSDUCER
Product Features
S type load cell & force transducer，tension and compression.
Good output symmetry， compact structure，simple to install，
full range of capacities. Suitable for electromechanical scale，
crane scale，hopper scale and various special scales.

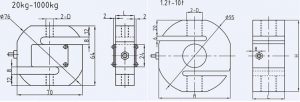

Main Dimensions and Accessories
| Capacity(kg) |
D |
L(mm) |
Capacity(t) |
D |
L(mm) |
H(mm) |
| 20-150 |
M8 |
12 |
1.2-5 |
M20 |
32 |
90 |
| 200-500 |
M12 |
20 |
7.5 |
M24 |
40 |
90 |
| 700-1000 |
M12 |
25 |
10 |
M30*2 |
50 |
110 |
Specification
| Capacity |
0.02～10t |
Zero balance |
400±20Ω |
| Rated output |
2.0mv/v±0.1% |
Input resistance |
351±5 |
| Accuracy class |
C3,0.05 |
Output resistance |
120%F.S |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
200%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
10V AC/DC |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
15V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
≥5000MΩ |
| Temperature effect zero |
0.012%F.S/10℃ |
Insulation resistance |
IP65/IP66 |
| Compensated temperature range |
(-10～+40℃) |
Environmental protection |
| Operating temperature range |
(-30～+65℃ |
Material: Alloy steel, Stainless steel |
| Cable: 4m |
| Wring: +Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) |
