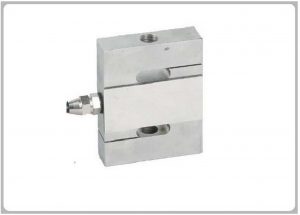

MC8106 LOAD CELL & FORCE TRANSDUCER
Alternative VISHAY 615/616
Product Features
S type load cell & force transducer，tension and compression.
Good output symmetry， compact structure，simple to install，
full range of capacities. Suitable for electromechanical scale，
crane scale，hopper scale and various special scales.

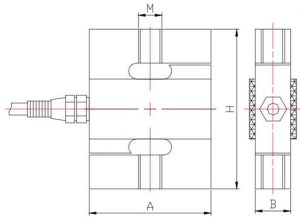

Main Dimension and Accessories
Specification
| Capacity |
50～1000kg |
Zero balance |
±1%F.S |
| Rated output |
2.0,3.0mv/v±0.1% |
Input resistance |
380±10Ω |
| Accuracy class |
C3,0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.02%F.S/10℃ |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP67 |
| Operating temperature range |
(-30～+65℃) |
Material: Alloy steel / Stainless steel |
| Cable: 3m / 6m |
| Wiring：+Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) |
