MC8103 LOAD CELL & FORCE TRANSDUCER
Product Features

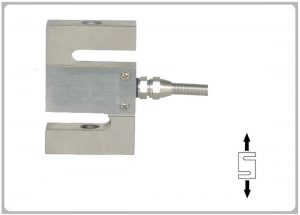

S type load cell & force transducer，tension and compression. Good output symmetry，
compact structure，simple to install，full range of capacities. Suitable for
electromechanical scale，crane scale，hopper scale and various special scales.

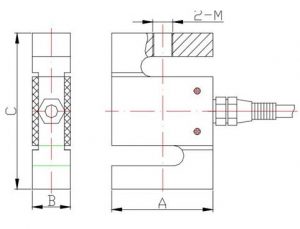

Main Dimensions and Accessories
| Capacity |
Size (mm) |
|
| A |
B |
C |
M |
| 5-20kg |
51 |
12.7 |
64 |
M8 |
| 25-75kg |
51 |
13 |
64 |
M8 |
| 100-300kg |
50.8 |
19 |
76.2 |
M12 |
| 500kg |
50.8 |
25.4 |
76.2 |
M12 |
| 2000kg |
76.2 |
25.4 |
108 |
M16 |
Specification
| Capacity |
5-2000kg |
Zero balance |
±1%F.S |
| Rated output |
2.0，3.0mv/v±0.1% |
Input resistance |
380±15Ω |
| Accuracy class |
C3,0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.02%F.S/10℃ |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP67 |
| Operating temperature range |
(-30～+65℃) |
Material: Alloy steel |
| Cable: 4m |
| Wiring：+Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) |
