Product Features

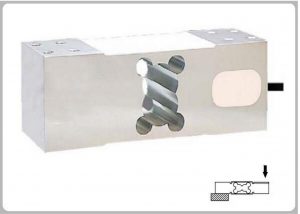

Single point loading structure. Conner adjusted before delivery to ensure
consistent output in stated load plane. Simple to install，easy to use.
Suitable for electronic platform scale，etc

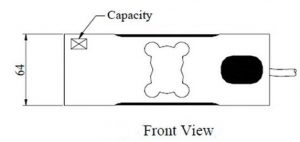

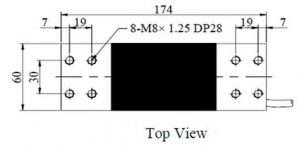

Main Dimensions and Accessories
Specification
| Capacity |
15～200kg |
Input resistance |
410±15Ω |
| Rated output |
1.0, 2.0mv/v±5% |
Output resistance |
350±5Ω |
| Total error |
0.02 |
Safe overload |
120%F.S |
| Creep in 30 minutes |
<±0.02%F.S |
Ultimate overload |
150%F.S |
| Temperature effect span |
<±0.02%F.S/10℃ |
Excitation voltage |
10V AC/DC |
| Temperature effect zero |
<±0.02%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Compensated temperature range |
-10～+40℃ |
Insulation resistance |
≥5000MΩ |
| Operating temperature range |
-30～+70℃ |
Environmental protection |
IP66/67 |
| Zero balance |
±1%F.S |
Material: Alloy steel |
| Cable: φ5×2m Recommended Platform Size：600×800 mm |
| Wring: +Exc ( Red) ;－Exc (Black);＋Sig ( Green);－Sig (White) |
