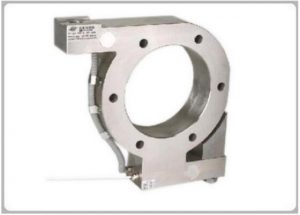

Main Technical Data
◆ Used in modification works in overhead crane,buggy ladle,etc.
◆ Capacity: according user’s technical need
◆ Accuracy class: 0.1
◆ Rated output:1.0~1.5±0.005mV/V
◆ Input resistance: 780±20Ω
◆ Output resistance: 700±2Ω
◆ Insulating resistance: ≥5000MΩ
◆ Maximum excitation voltage： 15V
◆ Safe overload: 120% F.S
◆ Temperature range: -30℃ to ﹢70℃
◆ Material: Alloy steel
◆ Protection class: IP67
◆ Wring: +input ( Red) ;－input (Yellow);＋output (Blue);－Output (White)
◆ Cable: 5m

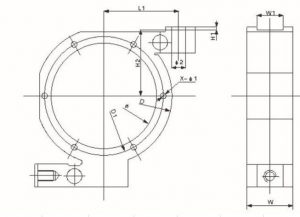

Main Dimensions
The dimensions are customized according users’technical need
