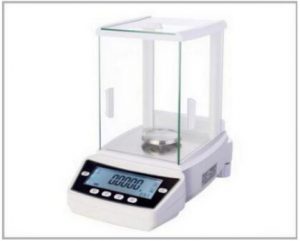

FA/JA series precision electronic balance
Features
Aluminum base
External calibration
RS232 interface
Percentage (%) weighing function
Large LCD display
Stainless steel weighing pan
Overload alarm function, users can set the weight’s upper/bottom line as needed.
Technical Data
| Model |
FA1004 |
FA1104 |
FA1604 |
FA2004 |
FA2104 |
FA2204 |
JA103 |
JA203 |
JA303 |
JA503 |
JA11003 |
| Accuracy grade |
GradeⅠ |
GradeⅡ |
| Capacity (g) |
0-100 |
0-110 |
0-160 |
0-200 |
0-210 |
0-220 |
0-100 |
0-200 |
0-300 |
0-500 |
0-1100 |
| Readability (mg) |
0.1 |
1 |
| Maximum permissible error |
±0.5e ±1.0e ±1.5e |
0≤m≤5×104 5×104＜m≤2×105 2×105 ＜m≤ Max |
0≤m≤5×103 5×103＜m≤2×104 2×104 ＜m≤ Max |
| Stable time (s) |
≤6 |
≤8 |
≤6 |
≤8 |
| Pan size (mm) |
φ80 |
φ110 |
| Shape size (mm) |
360×220×355 |
| Net weight (kg) |
6 |
| Power supply |
input AC 220V/50Hz output 15V DC1000mA |
| Power (V.A) |
15 |
| External weight value (g) |
100 |
200 |
100 |
200 |
1000 |
| Warm-up time |
180 |
