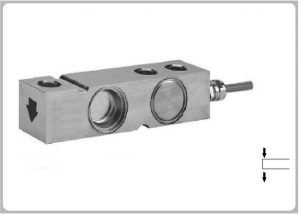

MC8410 LOAD CELL & FORCE TRANSDUCER
Alternative：VISHAY 3510
Product Features
Shear beam load cell，one end fixed，diverse loading， and good
seal structure. Self-centering，simple to install，easy to use，
good interchangeability. Suitable for various ultra-thin electronic
truck scale，one-track crane scale，hopper scale，etc.
Main Dimensions and Accessories
Specification
| Capacity |
0.3～3t |
Zero balance |
±1%F.S |
| Rated output |
2.0，3.0mv/v±0.1% |
Input resistance |
380±10Ω |
| Accuracy class |
C3,0.05 |
Output resistance |
350±3Ω |
| Non-linearity |
0.02，0.05%F.S |
Safe overload |
150%F.S |
| Hysteresis |
0.02，0.05%F.S |
Ultimate overload |
300%F.S |
| Creep in 30 minutes |
0.02，0.05%F.S |
Excitation voltage |
10V AC/DC |
| Temperature effect span |
0.015%F.S/10℃ |
Maximum excitation voltage |
15V AC/DC |
| Temperature effect zero |
0.012%F.S/10 |
Insulation resistance |
≥5000MΩ |
| Compensated temperature rang |
(-10～+40℃) |
Environmental protection |
IP68 |
| Operating temperature range |
(-30～+65℃) |
Material: stainless steel |
| Cable: 5m |
